Pressure test bench BV-PMC/100SP
PLC-controlledfor valvesindustrial

pressure test bench
pressure test bench
pressure test bench
Add to favorites
Compare this product


Characteristics

Test type
pressure
Operating mode
PLC-controlled
Test material
for valves
Sector
industrial
Technology
hydraulic
Configuration
vertical
Other characteristics
single-column

Description

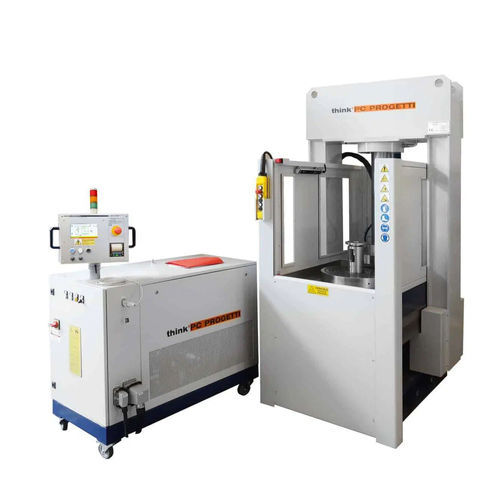

MOBILE BRIDGE PROPORTIONAL PRESS CLAMPING Vertical test rig with controlled pressing clamp; press force is automatically controlled according to the water pressure inside valves, and the result load is reduced to minimal terms. The mobile upper side bridge allows vertical loading of valves and the possibility to have double working stands; while the first is working, the second could be prepared for the next valves. In the basement there is a water vessel and an external water vessel could be added as option. The use of an open castle as an upper side reaction structure allows the user to make visual inspections of valve seats during the test. The rig has an armored steel protection on 3 sides. The front side can be closed by a mobile horizontal sliding gate (optional). A marketing machine is connected directly to control PLC to mark serial numbers on tested piece. The rig is controlled by a SKA-100 pressurization skid REACTION FORCE : 100 TON (10% minimum press clamping) (see working limits table) WORKING STANDS : 1 (2 on request) VALVE LENGTH MAX : 900 mm VALVE LENGTH MIN : 100 mm COLUMNS INNER CLEARANCE : 1000 mm LOADING HEIGHT : 800 mm BRIDGE STROKE : 600 mm BASEMENT WATER VESSEL : 120 Liters TERMINATIONS ALLOWED : RF, RJ CLAMPING STYLE : Type 1 – Proportional Compression (flange surface). CLAMPING FORCE CONTROL : Automatic within 5..100% interval, proportional to the hydrostatic pressure inside the valve under test. PROTECTION AGAINST WATER JET : Armoured steel on 3 side +mobile front door DIMENSIONS : 1460(L) x 2360P) x 2600H)
