Reclining test bench BOR-CV/250

pressureflowPLC-controlled

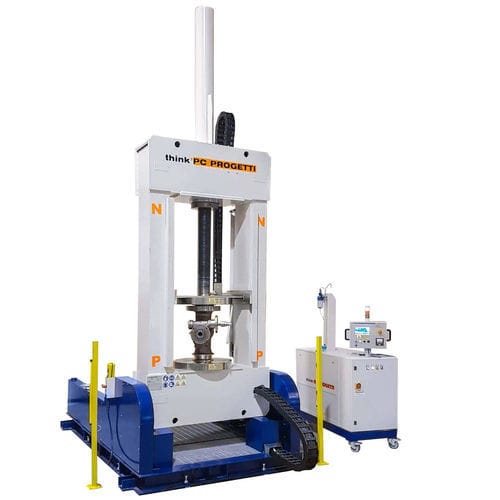

COMBINED CLAMPING W/90° TILTABILITY Horizontal test rig with “combined clamping”. The mobile reaction bridge is moved by one screwed column that assures the complete absence of external forces on valve body using proportional press clamping style. This prerogative makes it compliant to the most widespread international test standards. Besides, valve flow axes can be tilted by 90° according to the test position preferred by customer. In the basement a water vessel in installed as water reservoir for test procedures. The test process is controlled by a SKA-100 pressurization skid. REACTION FORCE : 250 TON (see working limits table) VALVE LENGTH MAX : 1300 mm VALVE LENGTH MIN : 0 mm COLUMNS INNER CLEARANCE : 1100 mm FLOW AXES HEIGHT IN HORIZONTAL POSITION : 720 mm LOADING HEIGHT IN VERTICAL POSITION : 1220 mm BASEMENT WATER VESSEL : 300 Liters TERMINATION ALLOWED : BW, SW, RF, RTJ CLAMPING STYLE : Type 3 – Combined DIMENSIONS (MECH) HORIZONTAL : 2120(L) x 2900(P) x 970(H) DIMENSIONS (MECH) VERTICAL : 2120(L) x 2900(P) x 3300/4100(H)
