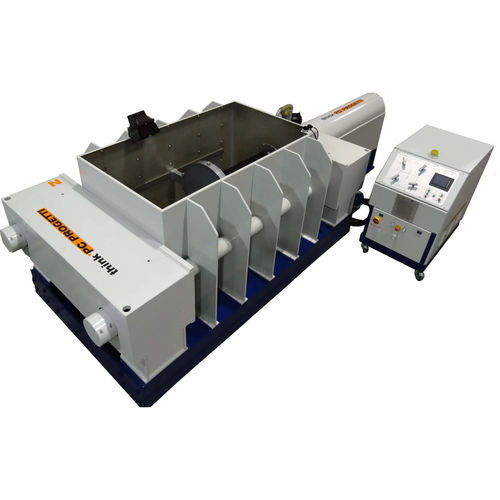

Pressure test bench BOI-V/250

PLC-controlledimmersion valvehorizontal

HORIZONTAL LOADING INNER RADIAL SEALS (BORE PLUGS) Horizontal test rig with inner radial seal clamping style. The mobile reaction bridge is moved by one screwed column that assures complete absence of external forces on body of valve. This prerogative makes it compliant to the most widespread international test standards. A vessel around the valve can be filled with water to visually check external leakages under GAS tests. The rig is controlled by SKMM/GAS pressurization skid REACTION FORCE : 250 TON (See working limits table) VALVE LENGTH MAX : 1550 mm VALVE LENGTH MIN : 150 mm COLUMN INNER CLEARANCE : 1150 mm LOADING HEIGHT : 868mm (heigh of flow axes from soil) VESSEL INNER DIMENSION : 1930(L) x 1065(D) x 1100(H) VESSEL CAPACITY : 2260 Liters FILLING/ RECOVERING PUMPS : 500 Liters/min (1000 Liters/min optional) TERMINATIONS ALLOWED : BW, SW, RF, RJ CLAMPING STYLE : Type 2 - Inner radial DIMENSIONS (MECH) : 4500(L) x 1690(D) x 1415(H)
