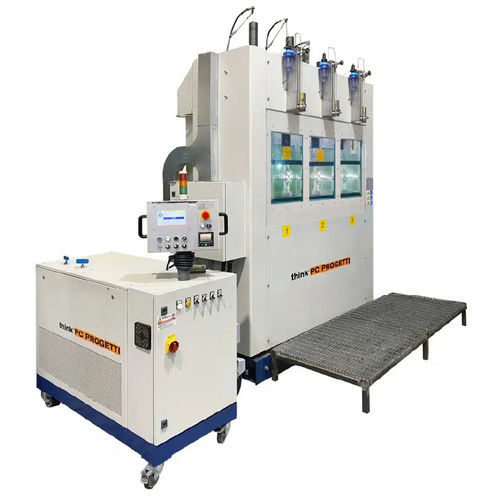

Pressure test bench BVI-3V/90SH

leakPLC-controlledimmersion valve

INNER RADIAL SEALS (BORE PLUGS) 3 INDEPENDENT WATER VESSELS & BULLET-PROOF SURROUNDING PROTECTION Three station vertical test rig with inner radial seal clamping style. Each test place has the possibility to perform GAS tests under water having independent water vessels, risign automatically to submerge the valve. Each water vessel can be equipped with a temperature control system. Proportional control of pressing clamp is available as well; the press force is automatically controlled according to pressure inside the valve, and the result load is reduced to minimal terms. Armored steel protection with bullet-proof glass guarantees the highest safety level for operators, and the best view for the under water bubbles leak catching. The rig is controlled by a SKA-100 pressurization skid REACTION FORCE : 30 TON MAX VALVE LENGTH : 460 mm MIN VALVE LENGTH : 200 mm LOADING HEIGHT : 1100 mm VESSEL INNER DIMENSION : 400 (L) x 525 (D) x 500 (H) WATER HEATING : 5-40°C DISTANCE BETWEEN TEST PLACES : 550 mm TERMINATIONS ALLOWED : RF, BW, SW, RJ CLAMPING STYLE : Type 2 - Inner radial DIMENSIONS (MECH) : 2295 (L) x 1110 (D) x 2630 (H)
