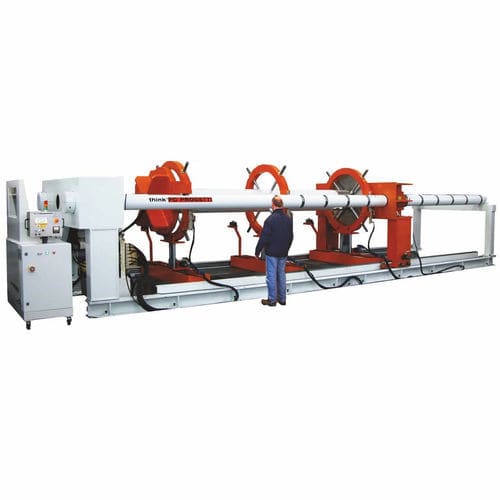

Pressure test bench BOT-2CSV/1200

PLC-controlledfor pipehydraulic

DOUBLE SECTORIZED COLUMNS AND PROPORTIONAL PRESS CLAMPING Test rigs for pipes with clamping style Nr. 2 “Inner/outer seals”. Reaction bridges are connected by sector columns, that allow to set up maximum pipe length. The fine adjustment on pipes is performed by pressing cylinder stroke. The right side reaction bridge is able to run on the entire columns length to cover a wide range of pipe length measure, as described in the technical table below. Pipe loading is performed by crane from the top, while Nr. 4 hydraulic “Lunette” lifters will support it for entire test duration and are able to center the alignment on seals heads, and “keep” it to avoid its bending during tests. The basement includes a water vessel with an evaporation limit device. The test bench does not need any foundations preparation. The rig is controlled by SKA class pressurization skid up to 1000 L/min water filling ability. REACTION POWER : 1200 TON CLAMPING STYLE : Type 2 - external radial seals MAX PIPE LENGTH : 7100 mm MIN PIPE LENGTH : 1500 mm MAX PIPE DIAMETER : 1020 mm ALLOWED ELLIPTICAL ERROR : 0,5% FLOW AXES HEIGHT : 1550 mm BASEMENT WATER VESSEL : 6000 Liters MAX TEST PRESSURE : 700 / 1050 bar FILLING FLOW : 500 Liters/min PRE-FILLING VACUUM : 160 m /h PNEUMATIC SUPPLY : 6.5 bar @ 1100 Nl/min Dry air not lubricated DIMENSIONS : 9700(L) x 2500(P) x 2180(H)
