Mechanical test bench LAB-40
semi-automaticvalvefor laboratories

Mechanical test bench - LAB-40 - Think PC PROGETTI - semi-automatic / valve / for laboratories
Mechanical test bench - LAB-40 - Think PC PROGETTI - semi-automatic / valve / for laboratories
Mechanical test bench - LAB-40 - Think PC PROGETTI - semi-automatic / valve / for laboratories - image - 2
Mechanical test bench - LAB-40 - Think PC PROGETTI - semi-automatic / valve / for laboratories - image - 3
Add to favorites
Compare this product


Characteristics

Test type
mechanical
Operating mode
semi-automatic
Test material
valve
Sector
for laboratories
Technology
pneumatic, electric
Configuration
mobile

Description

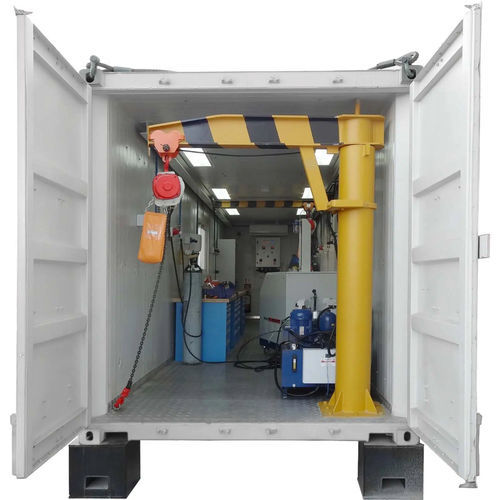

MOBILE WORKSHOPS FOR LAB VALVE TEST & REPAIR Workshop unit built into 40 feets container. Mobile valve repairing workshop, equipped with a complete tools set to repair & test valve onsite. The unit makes available all supply lines (electrical & pneumatic) for a complete mechanical workshop with testing units included. Generators are installed in separate container area, accessible from outside through roller shutter doors, and mounted on sliding brackets for easy access and maintenance. It has 160×160 H-Beam structure, about 1 Ton capacity over head crane with sliding beam running on container full length. A swing out crane installed on entrance door ensures best access to the equipment. ELECTRICAL POWER GENERATOR : Diesel Engine generator, Silent type 400 50Hz, 45KW 3PH & 2PH power sockets. ELECTRICAL PANEL & LIGHTING : INCLUDED COMPRESSED AIR GENERATOR : Electrical compressor Air Flow : 1400NL Max output pressure : 10 bar Power Supply : 400V-50Hz, 11 KW AIR DRYER : Refrigeration type. Air flow: 100 m3/h, connection ¾", max inlet pressure 16 bar AIR TANK : 300L, Vertical INTERNAL AIR DISTIRBUTION : INCLUDED HIGH PRESSURE GAS GENERATOR : NONE External Supply Line AIR CONDITIONER EQUIPMENT : • 14000 BTU • Dehumidification (Pts/Hr) 3.0 • 420 CFM MECHANICAL EQUIPMENT INSTALLED : - Nozzle Remover mandarin MAX 12" - Portable Grinding & lapping machine - Grinding machine for GATE VALVES & SWING CHECK VALVES. - Universal work bench w/ vice 8" - Office bench - Tools Cabinets - Swing doors cabinets - Compact floor drill - Universal Centre lathe machine. - Impact drill machine Electric driven - Straight grinder - Complete tools set for industrial maintenance. - Fire extinguisher.
