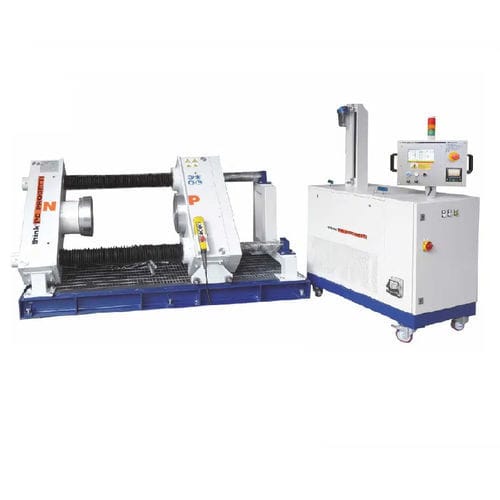

Pressure test bench BO45-2CV/100 LABS

PLC-controlledvalvehydraulic

DOUBLE SCREWED COLUMN + CYLINDER COMBINED CLAMPING LOW FLOW AXES HEIGHT Horizontal test rig with combined clamping style: inner radial seal and press clamping facilities. The mobile reaction bridge is moved by two screwed columns that assure complete absence of external forces on valve body and an hydraulic cylinder can make pressing clamping with or without proportional control. This prerogative makes it compliant to the most widespread international test standards. The rig is controlled by SKA-100 pressurization skid REACTION FORCE : 100 TON (10% minimum press clamping) LENGTH MAX : 1300 mm LENGTH MIN : 0 mm COLUMNS INNER CLEARANCE : 900 mm FLOW AXES HEIGHT : 700 mm BASEMENT WATER VESSEL : 170 Liters ca. TERMINATIONS ALLOWED : BW, SW, RF, RJ CLAMPING STYLE : Type 3 – Combined DIMENSIONS : 2250 (L) x 1016 (P) x 1200 (H)
