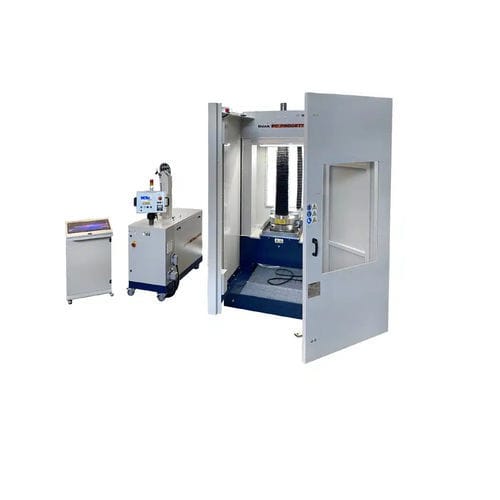

Vertical test rig with combined clamping style: inner radial seal. The upper side plateau is moved by a screwed column that assures complete absence of external forces on valves body. This prerogative makes it compliant to the most widespread inter national test standards. In the basement there is a water vessel and an external water vessel could be added as option. The rig is controlled by a SKA-100 pressurization skid; to have more information about it please consult dedicated technical data sheets. The rig could be completed with several options and accessories, please contact our sales office to have more information.
REACTION FORCE : 200 TON (See working limits table)
MAX VALVE LENGTH : 1100 mm
MAX VALVE LENGTH : 150 mm
CLEARANCE BETWEEN COLUMNS : 800 mm
TERMINATIONS ALLOWED : BW, SW, RF, RJ
CLAMPING STYLE : Type 2 – Inner radial seal (Bore plugs)
DIMENSIONS : 1375(L) x 2325(D) x 3820(H)
