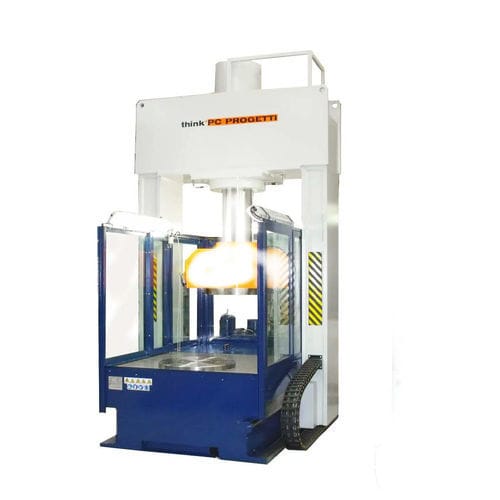

Vertical test bench BV-PMC/650

pressureleakautomatic

MOBILE BRIDGE. PROPORTIONAL PRESS CLAMPING Vertical test rig with controlled pressing clamp; press force is automatically controlled according to the water pressure inside valves, and the result load is reduced to minimal terms. The mobile upper side bridge allows vertical loading of valves and the possibility to have double working stands; while the first is working, the second could be prepared for the next valves. In the basement there is a water vessel and an external water vessel could be added as option. The use of an open castle as an upper side reaction structure allows the user to make visual inspections of valve seats during the test. The rig has an armored glass protection on 3 sides according EN1063. The front side can be closed by a mobile horizontal sliding gate (optional). Upper side crociera is equipped with a fast connection (photo 2) for sealing plateau, and a mounting tool is included as well (photo 1). The rig is controlled by a SKA-100 pressurization skid REACTION FORCE (SEE WORKING LIMITS TABLE) : 650TON (10% minimum press clamping) (See working limits table) WORKING STANDS : 1(2 on request) ALLOWED SIZES : DN700/DN2000PN16/PN64 LENGTH MAX : 1250mm LENGTH MIN : 200mm COLUMNS INNER DISTANCE : 1600mm LOADING HEIGHT : 1000mm BRIDGE STROKE : 1300mm BASEMENT WATER VESSEL : 220 Liters (only for spilled water not for storage) TERMINATIONS ALLOWED : RF, RJ CLAMPING STYLE : Type 1 - Proportional press Clamping CLAMPING FORCE CONTROL : Automatic within 10..100% interval, proportional to hydrostatic pressure inside the valve under test. DIMENSIONS : 2350(L) x 2900(P) x 4240(H)
