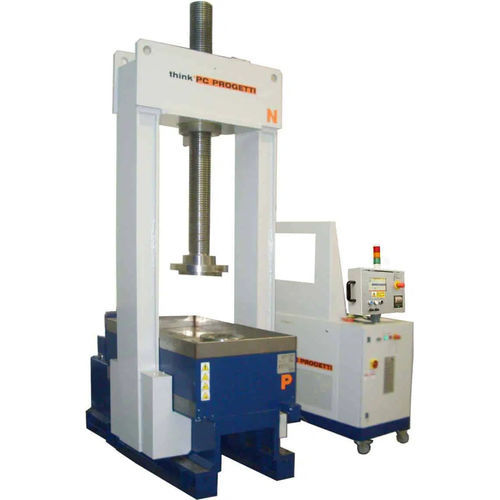

Pressure test bench BV-PMV/350

durabilityleakautomatic

SINGLE SCREWED COLUMN INNER RADIAL SEAL (BORE PLUGS) Vertical test rig with inner radial seal clamping style. The mobile reaction bridge is moved by one screwed column that assures complete absence of external forces on valve body. This prerogative makes it compliant to the most widespread international test standards. In the basement a water vessel could be installed as water reservoir for test procedures (see option). The rig is controlled by a SKM-100 pressurization skid REACTION FORCE : 350 TON (See working limits table) WORKING STAND : 1 (2 on request) VALVE LENGTH MAX : 1200 mm VALVE LENGTH MIN : 0 mm COLUMNS INNER CLEARANCE : 650 mm LOADING HEIGHT : 1000 mm BRIDGE STOKE : 1280 mm BASEMENT WATER VESSEL : 300 Liters ca. TERMINATIONS ALLOWED : BW, SW, RF, RJ CLAMPING STYLE : Type 2 – Inner radial DIMENSIONS (MECH) : 1140 (L) x 1880(P) x 4100 (H)
