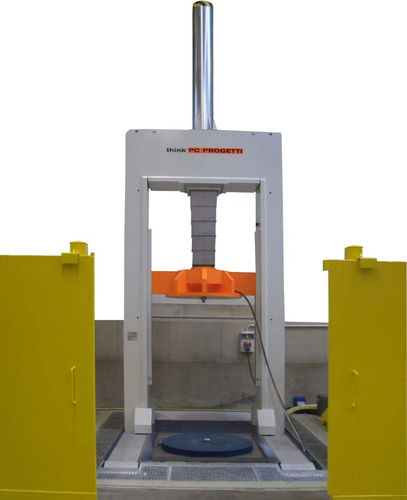

Vertical test rig with inner radial seal clamping style.
The mobile reaction bridge is moved by one screwed column that assures complete absence of external forces on valve body.
This prerogative makes it compliant to the most widespread international test standards.
In the basement a water vessel could be installed as water reservoir for test procedures (see option).
The rig is controlled by a SKM-100 pressurization skid;
REACTION FORCE : 600 TON (See working limits table)
VALVE LENGTH MAX : 3000 mm
VALVE LENGTH MIN : 700 mm
COLUMNS INNER CLEARANCE : 1720 mm
LOADING HEIGHT : Floor ground
BASEMENT WATER VESSEL : 300 Liters ca.
TERMINATIONS ALLOWED : BW, SW, RF, RJ
CLAMPING STYLE : Type 2 – Inner radial
REFERENCE STANDARD : ISO, DIN, API, ANSI, ASTM, FCI, BS (Other on request).
ELECTRIC SUPPLY : 3PH + T, 380V@50Hz, 10KW
DIMENSIONS : 2420 (L) x 3250 (P) x 7350 (H)
