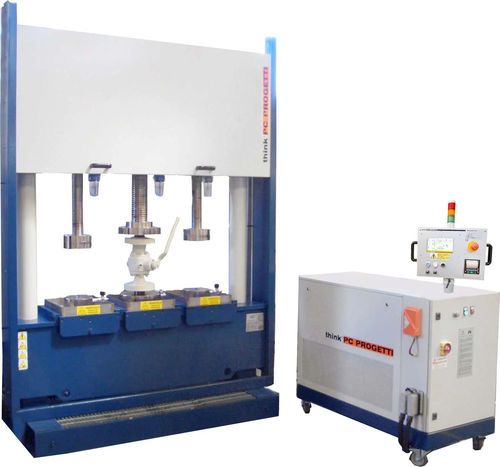

Pressure test bench BV-3V/150LP

leakautomaticmanual

INNER RADIAL SEAL (BORE PLUGS) 3 LOADING TRAYS DIFFERENTIATED LOAD Vertical test rig with inner radial seal clamping style. 3 test places available for contemporary pressure tests. The screwed columns assure complete absence of external forces on valves body. This prerogative makes it compliant to the most widespread international test standards. The rig is controlled by a SKA-100 pressurization skid REACTION FORCE (TOTAL) : 150 TON 1x150 TON 2x75 TON 3x50 TON (See working limits table) VALVE LENGTH MAX : 950mm VALVE LENGTH MIN : 0mm CENTER TO CENTER DISTANCE : 450mm LOADING HEIGHT : 1000mm LOADING TRAY LENGTH : 300mm MAX FLANGE DIAMETER : 450mm BASEMENT WATER VESSEL : 400 Liters TERMINATIONS ALLOWED : BW, SW, RF, RJ CLAMPING STYLE : Type 2 - Inner radial DIMENSIONS (MECH) : 1860(L) x 1250(P) x 2750(H)
