UNIVERSAL CLAMPING

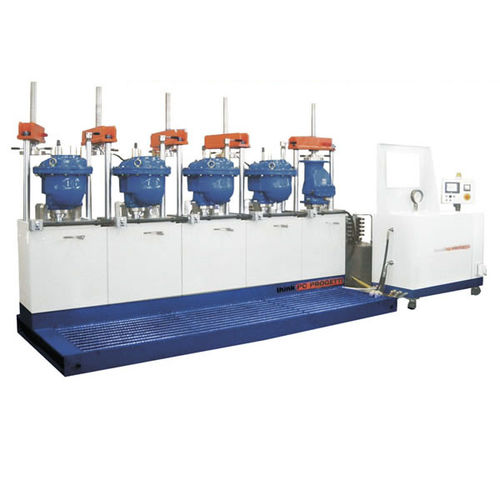

Vertical test rig with universal clamping style:
-Claws on RF/RJ valves
-Press clamping
-Inner radial seal.
5 test places available for multiple pressure tests.
The screwed columns assure complete absence of external forces on valve body.
This prerogative makes it compliant to the most widespread international test standards.
The upper side reaction bridge can be removed with a 90° rotation flag style.
In this way loading procedures are easier.
Water recovering is automatic even for check valves.
A device to open check valves is available on request.
The rig is controlled by a SKA-100 pressurization skid
REACTION FORCE : 5x20TON
LENGTH MAX : 340mm
LENGTH MIN : 50mm
MAX FLANGE DIAMETER : 300mm
BASEMENT WATER VESSEL : 100 Liters ca.
TERMINATIONS ALLOWED : BW, SW, RF, RJ
CLAMPING STYLE : Type 2 – Bore plugs
DIMENSIONS (MECH) : 1200 (L) x 1490 (D) x 1950/2305 (H)
