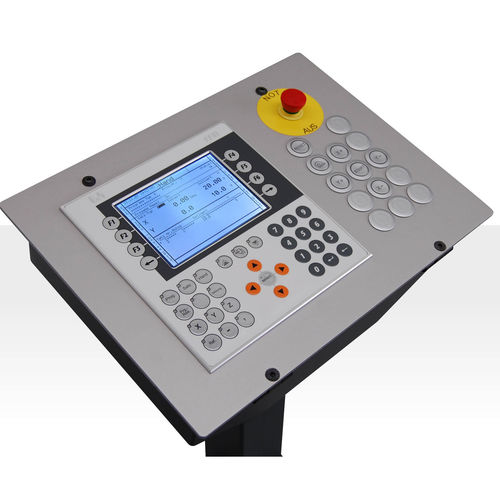

3-axis motion controller PP41

DCUSBRS-232

The NC control type PP41 controls up to 3 axes. The control can be used with profile bending machines, universal bending machines and mandrel bending machines as required. The axes are controlled by means of line motion control. Bending roller application and material feed are controlled in combination with roller bending machines. With mandrel bending machines this comprises the bending angle, tube turning and tube intake. The control offers a 12x9cm display, as well as program administration. NC programs can be created and edited directly at the control. The control is equipped with an interface for connection to an external PC or Notebook. The optional PC bending software facilitates particularly simple and convenient programming. Bending programs can be created on an external PC and transferred directly to the machine control.The NC control PP41 enables controlled and precise production of one-off and serial parts. he 2D roller bending software enables targeted and precise production of roller bending parts with straight ends or multiple bending radii. The program creation is very simple and convenient. The bend radius and bend angle are entered in the program table. The contour to be bent may consist of multiple bends or straight sections. The bending contour is graphically displayed.Profile-specific sizes and elastic recovery values are logged in a material catalogue.
