Characteristics

Applications
for tube expanding machines

Description

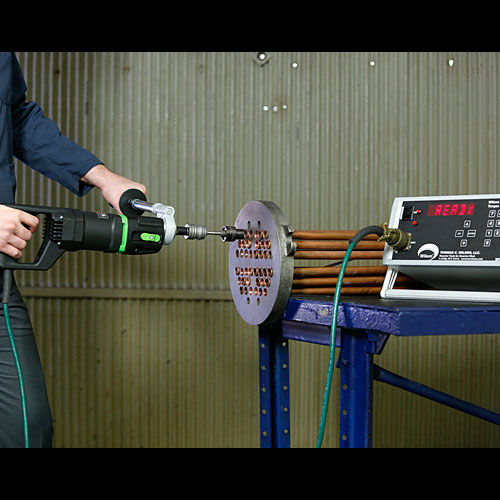

The WTC-1000 Electronic Torque Controller comes with your choice of electric roller for ferrous and non-ferrous tubes in boilers, heat exchangers and other pressure vessels. The electronic controller is adjustable for expanding torque and will automatically reverse the motor when selected torque is reached. Drive features include a dead handle for added leverage. Applications: Rolling ferrous and non-ferrous tubes in boilers, heat exchangers, condensers, and other pressure vessels with accurate and repeatable torque control. Features: Wilson Electric Torque-Controlled Tube Rollers are durable, reliable, and easy to use. In most cases, you are ready to roll tubes in less than 3 minutes. The torque controller is adjustable for expanding torque and will automatically reverse the motor when selected torque is reached. One control box can be used in 110/220 volt single phase power input. Motors are on/off reversing and equipped with dead handle that gives operator added leverage and maneuverability. The series consists of a range of electric motors. See chart below for selection.
