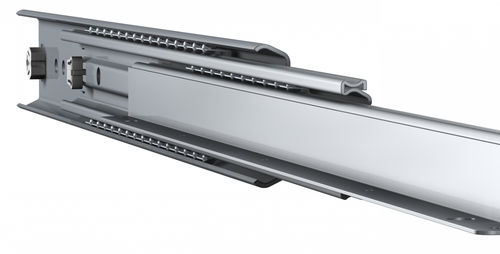

Telescopic slide ULF HD series

full-extensionball bearingdrawer

Technical information The custom made ULF HD D is a full extension, 3-beam telescopic ball bearing drawer runner range part of our heavy-duty section with extensions up to 100-130%. •Supports loads up to 204 kg •Add features such as lock-in, pull in, push to open, hold-out mechanisms •Add fixations such as tabs, holes, press inserts, drawer carriers or threated studs •The ULF HD can be incorporated into our ISL, UDL and Soft Close Column systems. Please visit the product features tab on the product page to find out more information about our customizations. In case of customization or a question about the slide, feature or functionality please contact a sales manager Load capacity Load capacity varies as a result of a number of factors. The main factors being the type of slide, length, and ratio between pull-out length and closed length. Another important factor is the number of cycles the slide is required to make. Thomas Regout distinguishes the type of usage between dynamic use and static use. Other factors that influence the load capacity are the features the slide is equipped with, and how it is mounted. Slides are usually mounted sideways so all data concerning load-capacity will be given for
