Arc welding generator Compact 500i
drawn arcwith generator setfor steel

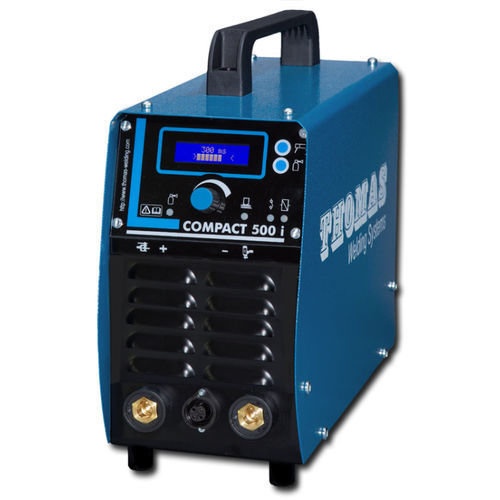

Arc welding generator - Compact 500i - THOMAS WELDING SYSTEMS - drawn arc / with generator set / for steel
Arc welding generator - Compact 500i - THOMAS WELDING SYSTEMS - drawn arc / with generator set / for steel
Add to favorites
Compare this product


Characteristics

Technique
arc, drawn arc
Power supply
with generator set
Material
for steel, for stainless steel
Other characteristics
inverter, portable
Intensity

Max.: 450 A

Min.: 200 A

Output frequency

Max.: 60 Hz

Min.: 50 Hz

Weld thickness

Max.: 10 mm
(0.4 in)

Min.: 3 mm
(0.1 in)

Description

The COMPACT 500i is a lightweight, 15 Kg, digital portable inverter drawn arc studwelder, capable of welding from studs (Reduced Base) Both the weld time and weld current are infinitely adjustable for preciseness and repeatability The superior chopping frequency of 20 KHz provides a much smoother arc than any competitive inverter-based stud welder. Because the COMPACT 500i uses inverter technology, it delivers faster arc response and superior repeatability compared to traditional transformer/rectifier-based stud welders. Superior performance for welding studs made of steel, stainless steel and aluminum Minimizing spatter generation and excellent welding fillet appearance by Hybrid technology newly developed for studwelding Dual-core processors technology on the machine, thereby increasing efficiency. For the welder this means a significant increase in response and welding performance The LCD Display provides quick viewing of all variables for greater accuracy and repeatability Self-monitoring system. The monitoring of all functions is clearly displayed by LED on the front panel for immediate diagnostic Designed with thermostatically controlled cooling fan and thermo-overload circuitry. Drawn Arc Pins and studs welders - Welding time - : - 10 - 500 mS Supply voltage - : - 3 x 400 V Fuse - : - 16 A Size (w x h x l) - : - 230 X 330 X 410 mm Duty cycle - : - Up to 60 pins/min No load voltage - : - 80 V Inert gas - : - 0.87 Insulation - : - F Weight - : - 15 Kg
