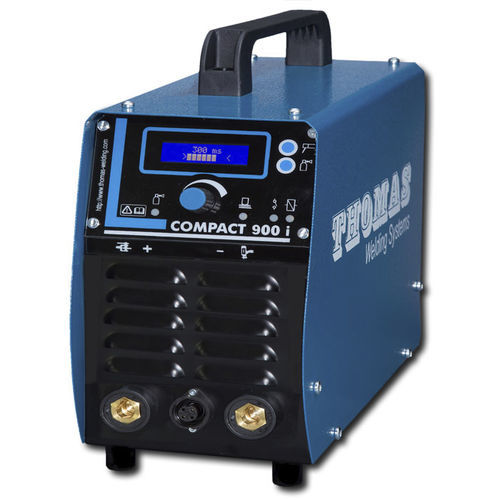

Arc welding generator Compact 900i
drawn arcwith generator setfor steel

arc welding generator
arc welding generator
Add to favorites
Compare this product


Characteristics

Technique
arc, drawn arc
Power supply
with generator set
Material
for steel, for stainless steel
Other characteristics
inverter, portable
Intensity

Max.: 900 A

Min.: 200 A

Output frequency

Max.: 60 Hz

Min.: 50 Hz

Weld thickness

Max.: 14 mm
(0.6 in)

Min.: 3 mm
(0.1 in)

Description

The COMPACT 900i is a lightweight, 19 Kg, Digital portable inverter drawn arc studwelder and is capable of welding from (RB) Both the weld time and weld current are adjustable for preciseness and repeatability Dual-core processors technology on the machine, thereby increasing efficiency For the welder this means a significant increase in response and welding performance The LCD Display provides quick viewing of all variables for greater accuracy and repeatability. Self-monitoring system. The monitoring of all functions is clearly displayed by LED on the front panel for immediate diagnostic. The superior chopping frequency of 20 KHz provides a much smoother arc than any competitive inverter-based stud welder. It delivers faster arc response and superior repeatability compared to traditional transformer/rectifier-based stud welders. Superior performance for welding studs made of steel, stainless steel and aluminum Minimizing spatter generation and excellent welding fillet appearance by Hybrid technology newly developed for studwelding Designed with thermostatically controlled cooling fan and thermo-overload circuitry. Technical Features Compact 1000i Drawn Arc studs welder - Welding time - : - 10 - 800 mS Supply voltage - : - 3 x 400 V Fuse - : - T 20 A Size (w x h x l) - : - 230 X 330 X 410 mm Duty cycle - : - Up to 25 studs/min No load voltage - : - 80 V Inert Gas - : - Optional Insulation - : - F Weight - : - 19 Kg
