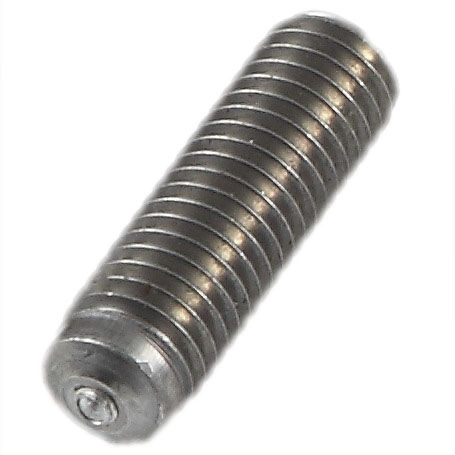

Threaded stud PDsteelstainless steeldrawn arc welding
Add to favorites
Compare this product
Characteristics
- Type
- threaded
- Material
- steel, stainless steel
- Fixation
- drawn arc welding
- Diameter
Max.: 24 mm
(0.94 in)Min.: 5 mm
(0.2 in)- Length
Max.: 100 mm
(3.94 in)Min.: 15 mm
(0.59 in)
Description
(Pitch diameter) welding studs are threaded studs, the base of the stud is the same diameter as the nominal thread diameter . The weld fillet is greater than the thread diameter
Typical Use : PD studs are frequently used where maximum strength and economy are required
Our standard Drawn Arc weld studs are available in Mild Steel Grade 4.8 and Stainless Steel A2 (AISI 304)
Other grades, i.e. AISI 316 (A4), AISI 310 are available on request
Drawn Arc studs come with a bright finish, but we can provide numerous other finishes, including zinc plating.
All Drawn studs are supplied with ceramic ferrules, as these are essential to the Drawn Arc process
Thomas Welding Systems weld studs are manufactured to the latest specifications
