Vertical stage MVS005, MVS005/M
translation1-axis

vertical stage
vertical stage
Add to favorites
Compare this product


Characteristics

Orientation
vertical, translation
Number of axes
1-axis
Stroke

13 mm
(0.512 in)

Description

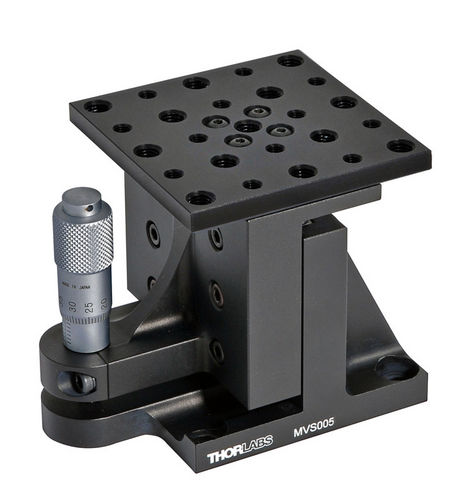

Features Fine Positioning via Micrometer Adjusters Array of 1/4"-20 (M6) and 8-32 (M4) Mounting Holes 13 mm (0.5") Deck Height Adjustment Grooved Top Plate Available (Compatible with Our Range of Flexure Stage Accessories) Black Anodized Aluminum Construction The MVS005 Vertical-Axis Positioning Stage has been developed to meet the stringent requirements associated with aligning optical components. It delivers 13 mm (0.5") of height adjustment and provides a working height range of 63.0 to 76 mm (2.48" to 2.98"). The stage is shipped complete with a fine adjustment micrometer drive. The micrometer offers 13 mm (0.5") of fine positional adjustment with a 10 µm (0.001") graduated scale. It delivers 500 µm (0.025") of height adjustment per revolution, making the stage ideal for aligning a wide range of optical components. The top mounting plate has a generous array of 13 x 1/4"-20 (M6) and 12 x 8-32 (M4) mounting holes. If required, the top plate can be replaced with our 3 mm grooved top plate (MMP1), allowing the stage to be used with our range of flexure stage accessories. Three extended top platforms are available for use when end-firing or butt-coupling to small lightwave devices. Furthermore, the top plate can be removed and replaced with our RB13P1 adapter plate (see below), which offers a generous array of thirteen 1/4"-20 (M6) and twelve 8-32 (M4) mounting holes.
