Rotary positioning stage

manual1-axis

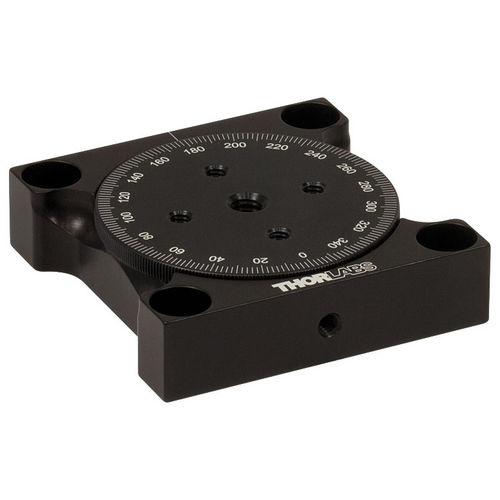

Features Lockable Continuous 360° Rotation Double-Thrust Bearing Design Horizontal or Vertical Mounting The RP01 Manual Rotation Mount is a cost effective platform for an optomechnical assembly requiring smooth, backlash-free rotation. The double thrust bearing design is manually actuated, offering 360º continous rotation capable of accepting vertical loads up to 50 kg when the platform is mounted horizontally. When mounted vertically, the platform is capable of accepting loads of up to 9 kg. The easy-to-read radial scale is marked every 2º. Once a position has been set, a convenient, balldriver actuated set screw locks the platform in place. Four corner located 1/4" (M6) counterbored holes are conveniently spaced for direct fastening to an optical table or breadboard.
