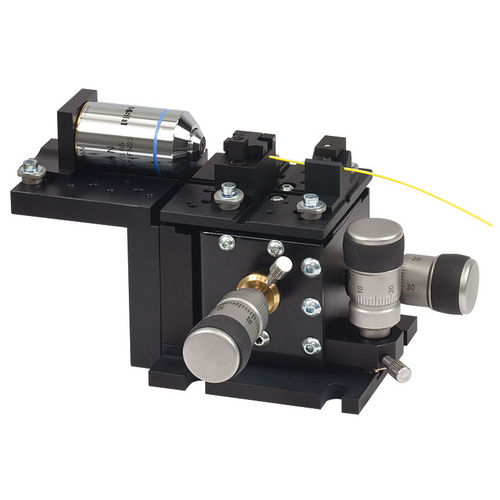

Manual nanopositioner MBT612D

linear3-axisanalog

Features For FC-Connectorized Fiber SMF Patch Cords 4 mm 3-Axis Travel Adjustment Range Includes 300 m Fine Adjustment at 50 m per Revolution Suitable for any RMS-Threaded Objective Objective Not Included This system is configured from our MBT616D three-axis flexure stage. When considering a fiber launch system, the use of nested flexure plates in place of more traditional linear bearings provides a number of advantages. First, one obtains nearly perfect smooth continuous motion. Second, the use of a flexure mechanism eliminates the use of lubricants within the stage structure. With traditional bearings, minor imperfections in the bearing or contaminates trapped in the lubricant create localized rough spots where the displacement resolution degrades significantly. The lack of lubricants also minimizes stage creep.
