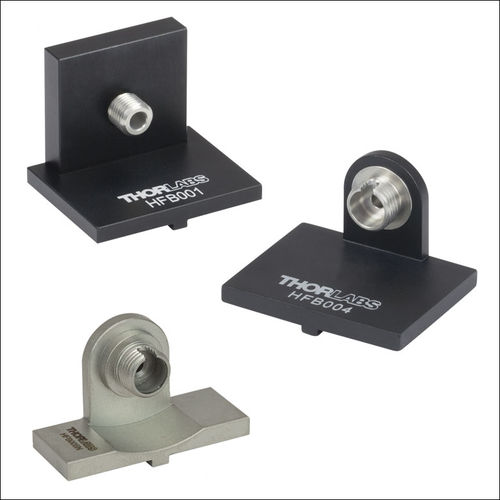

Cable holder HFB00N series

adjustablemagnetic

Flexure Stage Accessories: Connectorized-Fiber Holders Holders for Connectorized Fibers: • HFB001: SMA-Connectorized Fibers • HFB004: FC/PC-Connectorized Fibers, Wide Key Slot (2.2 mm) • HFB004N: FC/PC-Connectorized Fibers, Narrow Key Slot (2.0 mm) • HFB005: FC/APC-Connectorized Fibers, Wide Key Slot (2.2 mm) • HFB005N: FC/APC-Connectorized Fibers, Narrow Key Slot (2.0 mm) 12.5 mm Optical Axis Height These connectorized-fiber holders are compatible with the mounting platforms of our multi-axis flexure stages. Each holder is designed to securely hold the center of the connector 12.5 mm (0.49") above the flexure stage platform. The design virtually eliminates fiber tip motion when the fiber cable is moved and significantly improves the repeatability of the positioning of the fiber tip. Our holders for FC/PC- and FC/APC-connectorized fibers are available with either wide key (2.2 mm) or narrow key (2.0 mm) slots. Please see the Key Alignment tab for more information.
