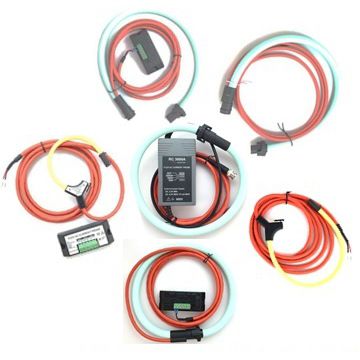

Rogowski coil current sensor RC series

flexible

RCF005A series are Flexible Rogowski Coil Current Transformer which has the main function of monitoring AC line current in circuits up to 11 kVac or nominal currents up to 50 kA. The Key characteristic of the product is the flexibility of the coil and uninterruptible power installation which makes them easier to be installed around bus bars and multiple conductors. RCF005A series is able to output all kinds of standard current or voltage signal and meets the requirements of industrial equipment measuring function. Rogowski Coils are very dependent on the uniformity of the winding and sensitive to the position of the conductor(s) that is being measured, as well as the magnetic fields from external conductors. Advantages  Simple to install(especially in limited space)  Wide dynamic current range  No magnetic saturation  No open circuit danger,No overload danger,Intrinsically safe.  Wide bandwidth  Low current measurable  High protection class IP68 Applications  Power meters  Energy sub-meters  Power quality monitoring  Condition monitoring  Distributed measurement systems.  Lighting current  Electric furnace  Harmonic management  Relay Protection
