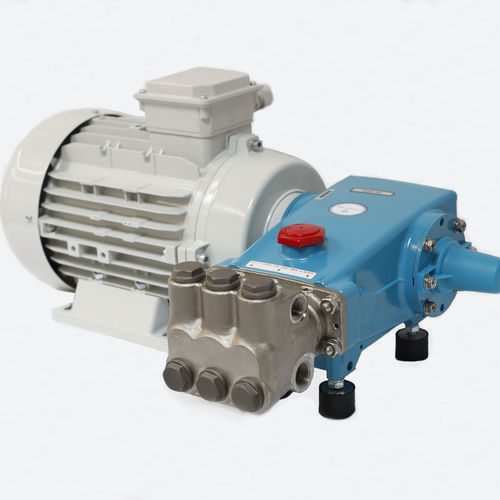

Seawater pump
for winefor juicewith electric motor

seawater pump
seawater pump
seawater pump
Add to favorites
Compare this product


Characteristics

Fluid
for seawater, for wine, for juice
Operation
with electric motor
Technology
plunger
Mobility
stationary, mobile
Domain
industrial, for water treatment, for the food and beverage industry, for offshore applications, for the wine industry, for maritime applications
Applications
high-pressure, for reverse osmosis
Material
stainless steel, bronze
Fluid specification
for aggressive media, for corrosive fluids
Voltage
380 V, 400 V
Protection level
chemical-resistant, abrasion-resistant, corrosion-resistant
Other characteristics
heavy-duty, high-efficiency, compact, continuous-flow, high-performance, low-noise level, constant-pressure, modular, OEM, corrosion-proof, base-mounted, triplex, belt-drive, with seal, adjustable-flow, heavy-duty, direct-drive, skid-mounted, for fluids, variable-speed, high-reliability
Flow

Max.: 400 l/min
(105.66882 us gal/min)

Min.: 1 l/min
(0.26417 us gal/min)

Pressure

Max.: 150 bar
(2,175.566 psi)

Min.: 10 bar
(145.038 psi)

Power

Max.: 90 kW
(122.37 hp)

Min.: 0.37 kW
(0.5 hp)

Fluid temperature

Max.: 70 °C
(158 °F)

Min.: 5 °C
(41 °F)

Description

With a proven reputation in reverse osmosis applications around the world, Three Es high pressure pumping solutions are chosen for the most demanding applications boasting the following features: - Reliability and long life - High performance and efficiency - Low energy consumption Our pumping units are used in various reverse osmosis applications such as: Environmental applications: - Industrial wastewater treatment - Leachate treatment - Water treatment and purification Food and beverage applications - Concentration of food fluids, such as fruit juices - Concentration of wine, vinegar - Water treatment Salt water reverse osmosis (SWRO): - Work and pleasure boats - Holiday resorts - Off-shore platforms Materials of construction include nickel aluminium bronze (NAB), 316 stainless steel and duplex stainless steel to provide excellent corrosion resistance, strength and durability, even in the harshest environments. To keep pumping units healthy, you can equip them with our innovative predictive software, which allows you to monitor the correct operation of the pumping unit, signal preventive maintenance and avoid unexpected downtime. Our range of models includes compact direct-drive units or modular solutions, with single-phase or three-phase electric motors, standardised with different ranges of flow rates and pressures respectively from 1 to 400 LPM and from 10 to 150 Bar.
