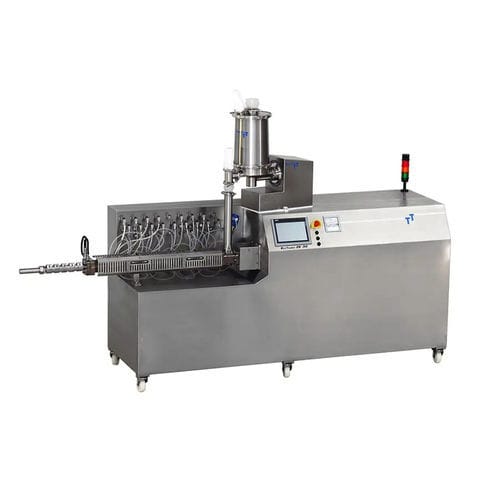

Compounding extruder ZE 32 HMIcompactlaboratory
Add to favorites
Compare this product
Characteristics
- Applications
- compounding
- Other characteristics
- laboratory, compact
- Output
150 kg/h
(330.6934 lb/h)- Screw diameter
32 mm
(1.3 in)- Maximum speed
Min.: 0 rpm
(0 rad.min-1)Max.: 1,000 rpm
(6,283 rad.min-1)- Temperature
Min.: 230 °C
(446 °F)Max.: 400 °C
(752 °F)- Weight
1,000 kg
(2,205 lb)
Description
Three-Tec's extruders feature a compact design, high torque, and intuitive touch-panel operation. They are equipped with easily interchangeable extrusion dies. These can be individually set up and adapted to the extrusion task by means of different screw segments such as conveying, return conveying, kneading or mixing segments.
Max. Torque : according to customer requirements
Cooling : Water / air or water -/ air mixture
heating zones : 1-12
L/D : 20, 25, 30, 40, 50, 60 or according to customer's requirement.
Drive : low noise servo motor
Material parts in contact with product : Stainless steel
Material barrel, extrusion dies : various stainless steels hardened, adapted to the customer application
Catalogs
No catalogs are available for this product.
See all of Three-Tec GmbH‘s catalogs
