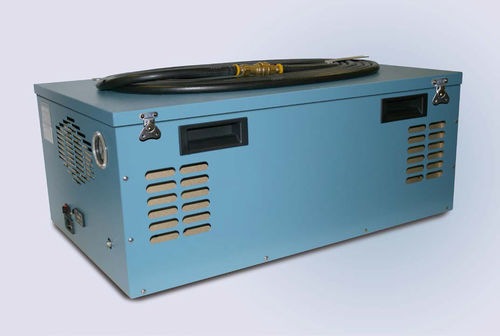

Air compressor ACS2520

electricstationaryindustrial

DESCRIPTION The ACS2520 is used with a Model 2500 and will fit on the bottom shelf of the 2500 mobile cart. This is a fully enclosed compressed air supply with an air dryer and sound muffling cabinet. This system is ideal for in Lab use because the sound level is less than 70 decibels. The Model ACS2520 has a hose hold down on top for ease of storage. PRINCIPLE OF OPERATION To provide the Model 2500 Humidity Generator with a clean, dry air supply and to give the laboratory a noise level that's acceptable for the lab technicians to carry on with their calibrations. FEATURES •Two 175 psiG Oil-Less Air Supplies •Dry Air To <-40 °C Ambient Pressure Dew Point •Sound level <70 db •Vibration Isolated Compressors •Membrane Air Dryer •Pressure Regulator and Gauge •25’ Air Hose Extension •On/Off Circuit Breaker Switch •10’ Removable AC Power Cord •Hour Meter •Indoor Use Only •Dimensions L 28.8” x W 18” x H 12.9” •Cabinet Weight Approximately 85 Lbs. •Now Includes Remote Control Start Option as Standard SPECIFICATIONS The ACS2520 has two 1/2 HP oil-less air supplies that can run with a continuous pressure of 175 psi with a maximum ambient air temperature of 40 °C at a continuous duty of 500 hours before a minor maintenance service kit is required.
