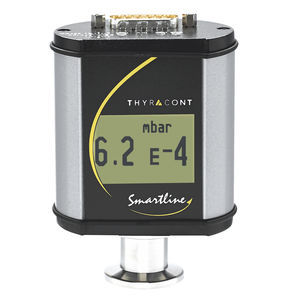

Pirani vacuum transmitter VCP

with LCD displaychemical-resistantRS485

The processor controlled VCP Pirani vacuum transducer with robust helix filament is ideal for precise measurements in the fine vacuum range for demanding applications with aggressive media, like freeze drying, heat treatment, coating, vacuum centrifuges, chemical engineering and more. Overview VCP vacuum transducer with Pirani sensor: - Durable, elastic Pirani spiral coil filament - Suitable for demanding applications with aggressive media due to platinum rhodium filament - Overpressure stability up to 16 bar - Short response time of up to 40 ms - Integrated metal screen for protection against oil and solvent vapors - Stable measurements due to optimized temperature compensation Overview Smartline vacuum transducers: - Digital RS485 interfaces plus 0-10 V output signal, EtherCAT or PROFINET - Bluetooth adapter SLKBT for wireless communication - Parameters for preventive maintenance - Exchangeable sensor heads: - Optional LCD display (exc. EtherCAT, PROFINET) - Readjustment of zero and atmosphere by push-button or interface - LEDs for device status and switch points - Scaleable output characteristics - Metal sealed stainless steel sensor cell,suitable for UHV applications (He leackage rate <5e-10 mbar l / s) - Two independent, potentialfree relay switch points (exc. EtherCAT, PROFINET) - Resistant, EMC compatible metal housing, protection class up to IP54 - Expansion with 2 channel controller VD12 or 4 channel controler VD14 possible - VacuGraphTM Windows software: For visualisation, analysis and storage of measuring data
