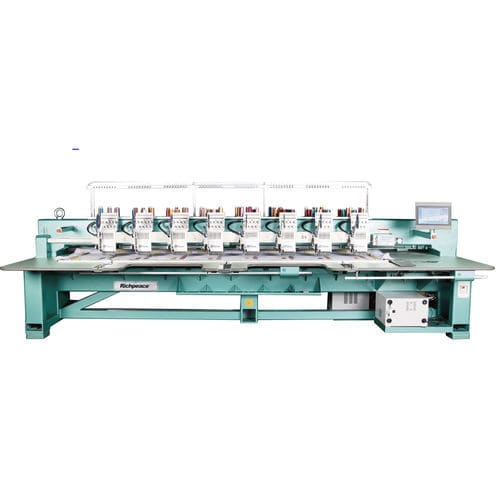

8 head embroidery machine RPCE-NM-FE-8 series

9 needleshigh-speed

8 Heads Embroidery Machine(Optional 4 colors / 6 colors / 9 colors / 12 colors / 15 colors, according to machine heads distance) 1. With the advantages of software, computer, machinery integration, Richpeace has independent intellectual property rights, and strong research and development customization capability. 2. Industrial control system with ARM+LINUX: independent research and development, flexible extension, strong compatibility, stable and reliable, strong compatibility, can be used under high voltage fluctuations conditions, reliable and stable, and low failure rate. 3. 10.1-inch or 15.6-inch LCD touch screen, refresh-rate with 50ms/time, real-time dynamic display. 4. Servo motors are used on main shaft, X shaft and Y shaft. 5. Latest thread clamping system and thread guiding tubes make it go more smoothly, lower thread breakage rate. 6. Lead screw for color change, speed as fast as 1.2 seconds for 9 needles, more precise positioning. 7. Dynamic motor thread trimmer: Controllable thread length, higher efficiency, quiet and more environmental effect. 8. Widened transmission linear guide rail, low noise, longer lifetime. 9. New style hidden thread-guiding integrated transparent cover, thread picking spring force is adjustable separately, threading more faster. 10. New upper thread holder: Reduce the rate of thread breakage. 11. Use branded high-speed oil supply rotary hook. 12. The patented design can supply oil to the double bearing rotary hook sleeve, noise reduction and eliminate the possibility of locked up.
