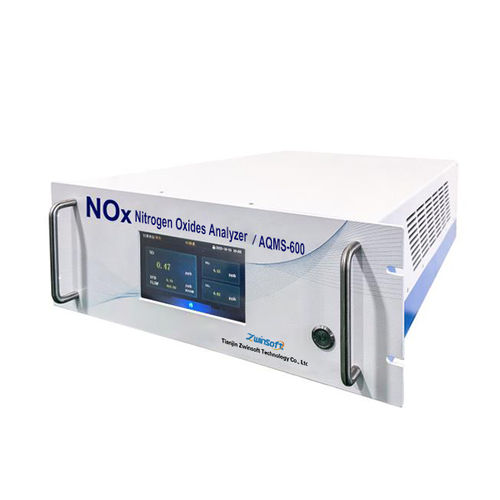

Nitrogen oxide analyzer AQMS-600

nitrogen dioxidenitric oxidemonitoring

Overview: AQMS-600 NOx analyzer adopts chemiluminescence method and combines with advanced microprocessor technology. It provides accurate and reliable detection of NOx at ppb~ppm level which meets the requirements of ambient gas monitoring and online monitoring of pollution source with dilution method. NOx analyzer can completely control all functions and also provides online instruction for important work parameters. Real time auto compensation for temperature and pressure will be made during measurement. Features: 1.Measurement range: 0-50ppb to 0-20ppm,(optional). 2. NO, NO2, NOx is measured separately. 3. Multiple functional operations by microprocessor. 4. Task software is allowed to monitor test data during operation. 5. Continuous self-checking with alarm function. 6. Permeation drying tube equipped with ozone generator. 7. Bidirectional RS-232 port for remote control. 8. Digital output working parameter. 9. Response time optimized by signal filter technology of self-adaption. 10. Compensation function for temperature and pressure. 11. USB and Ethernet interface. 12. Colorful display and screen touch operation. 13. Large memory and history data saved automatically. 14.On board storage for over 3 years of data Parameter: 1. Unit: ppb, ppm, μg/m3, mg/m3 2. Measurement range: 0~500ppb 3. Lower detection limit: ≤0.04ppm 4. Ports: Analog, Dihital, Rs232, RS485, RJ45, USB 5. Protocol: Modbus 6. Power Supply: 200~240V, 50/60Hz, 300W 7.Zero drift: - ±1ppb/24h 8. 80% range drift:- ±10ppb 9. 20% range drift: - 5ppb 10. 80% range precision: - 10ppb 11.Power supply: - AC220V±10%, 50Hz±1Hz 12.noise: - 0.5ppb
