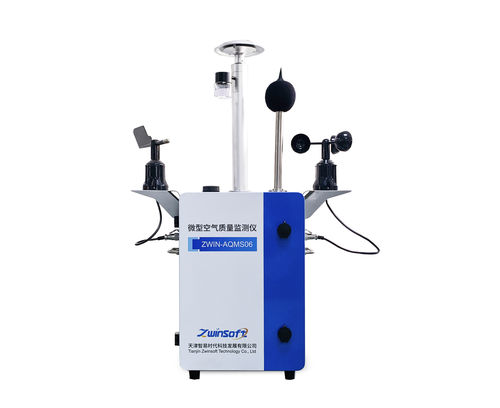

Outdoor air quality monitor ZWIN-AQMS06

for environmental analysisCOPM2.5

ZWIN-AQMS06 Mini Air Quality Monitor is designed specially for gas detection. All monitoring parameters can be configured , which include O3, NO2,NOx,CO,SO2, PM2.5 and PM10. Other pollutants like VOCs, H2S and CO2, noise and meteorological factors can be configured according to your requirements. It comes with a pumping gas sensor, which is able to sample the gas and then detect it. The gas sensor can be replaced according to specific needs. Enclosure - Water-proof,dust-proof,rust-proof,lightning protection, heat dissipation;GPRS transmission, Outdoor installation Humidity&Temperature module - Temp:-40～120℃; resolution: 0.1℃； Accuracy:±0.3℃ Humidity:0～100%RH; resolution:0.1%RH； Accuracy:±2%RH Particle module - Detection Method:Light scattering laser photometer;Resolution:0.1ug/m3; Measured Mass Fraction: PM2.5, PM10,TSP Concentration Range:0～1000ug/m3(optional) Gas module - NO2: measuring range/resolution:0-1/0.001ppm Sampling accuracy:±2%FS CO: measuring range/resolution:0-10/0.001ppm Sampling accuracy:±2%FS SO2: measuring range/resolution:0-1/0.001ppm Sampling accuracy:±2%FS O3: measuring range/resolution:0-1/0.001ppm Sampling accuracy:±2%FS Wind spped& wind direction module - Wind speed:0~45m/s;resolution:0.1m/s Accuracy:±0.3m/s;Start-up speed:≤0.5m/s Wind Direction:0-360°;resolution:1° Accuracy:±3° Barometric pressure - Range:10～1100hPa, resolution:0.1hPa,Accuracy:±0.3hPa Software system - Basic functions（Real-time monitoring, query)
