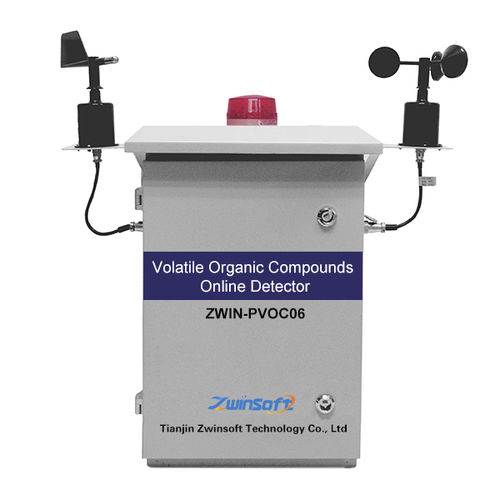

Gas detector ZWIN-PVOC06

peoplelow-voltageheat

Zwin-PVOC06 is a product suitable for monitoring of factory area VOCs and fixed source VOCs. It is based on PID photoionization and adopts pump-suction sampling method. It can be directly connected to gas outlet pipes, he gas entering the instrument passes through steam traps, dehumidifiers, flow meters and other units for drying and filtering, and then enters the intelligent PID organic gas detector, with advanced spectroscopy technology, the concentration of VOCs in the gas is measured. The system adopts a modular structure, which is easy to combine, and the preprocessing function can be integrated and installed according to the actual needs of users. Parameters Detecting gas: VOCs volatile organic gas Detecting principle: PID photoion principle Measuring range: 0-20/200/2000/10000ppm ( optional) Repeatability: ≤3% Indication error≤±6%FS Zero drift ≤±1%FS/4h, range drift ≤±5%FS/4h The box has the explosion-proof certification qualification ExdⅡBT6Gb Features ●Photoionization monitoring (PID) detection principle, built-in pump sampling, accurate and reliable measurement results. ●With automatic zero calibration, automatic cleaning function. ●Human-computer interaction requirements: LCD screen display is adopted, which can intuitively and dynamically display various monitoring data, instrument working status, provide full English menu and friendly human-computer dialogue interface. ●Hardware interface: modular design, aviation plug connection, independent operation of each component, high system reliability. ●Support hot-swap SD card update system, can store monitoring data locally for more than two years and view historical data locally.
