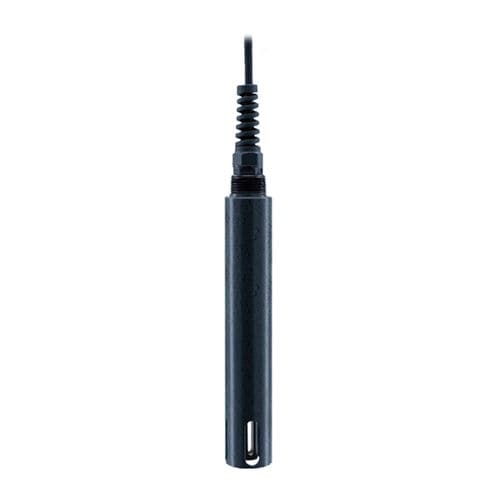

Digital conductivity sensor ZWIN-Cond1006

for water

Digital Conductivity Sensor ZWIN-Cond1006 PRODUCT INTRODUCTION The digital conductivity sensor is an instrument used to measure the conductivity (EC) in a solution or water, based on the conductivity of ions in the solution, When current passes through a solution containing ions, the movement of ions produces conductivity. The conductivity is proportional to the concentration and type of ions in the solution. The built-in temperature sensor automatically adjusts the measurement results to compensate for the effect of temperature on conductivity. Application fields: widely used in fresh water monitoring, industrial heating/cooling, drinking water quality analysis, water treatment, chemical industry, food processing, environmental monitoring and other fields. PERFORMANCE PARAMETERS 1.Measurement principle: quadrupole conductivity; 2.Measuring range: 1μS/cm-100ms/cm or 1μS/cm-200ms/cm: 3.Accuracy: < 1%; 4.Resolution: 0.01/0.1/1μS/cm(depending on the range); 5.Repetition rate: <1%; 6.Drift: <1%; 7.Temperature compensator error:<1%; 8. Response time: 10s; 9.Working temperature: 0-50°C 10.Sensor size (DXL): Φ34X225; 11. Housing material: POM; 12. Protection level: lP68, 6bar;
