Nitrogen gas sensor ZWIN-NH3-N1006

ammoniaion electrode

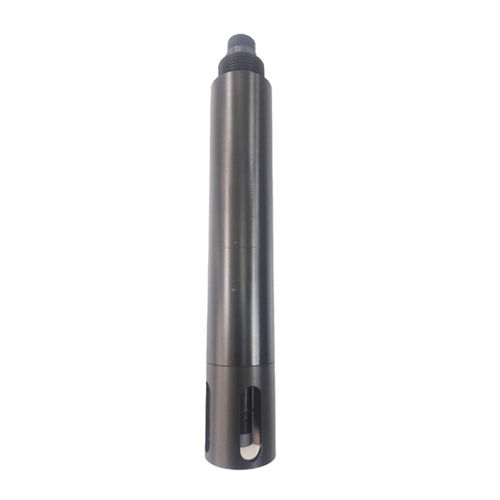

Digital Ammonia Nitrogen Sensor ZWIN-NH3-N1006 PRODUCT INTRODUCTION The ammonia nitrogen sensor uses an ion-selective electrode and has a membrane with a specific type of ion permeability, The composite sensor composed of this selective membrane and electrolyte can be used to measure the redox potential of the required specific ions (for example, NH4+). Application fields: sewage treatment plant treatment process and discharge port water quality monitoring, industrial process water quality monitoring, surface water/groundwater monitoring, other industrial wastewater treatment process and discharge port monitoring installations, etc. PERFORMANCE PARAMETERS 1.Measurement principle: ion selective electrode method; 2.Measuring range: 0.1~100mg/L; 3.Accuracy: ≤10% of the measured value or 0.1mg/L, whichever is greater; 4.Resolution: 0.1mg/L; 5.Repetition rate: <0.1mg/L; 6.Drift: <0.3mg/L; 7.Temperature compensator error: <0.1mg/L； 8.Response time: <15s; 9.Working temperature: 0-50°c; 10.Sensor size (DXL): ф34X225; 11. Housing material: POM; 12.Protection level: lP68, 6bar;
