Calcium ion concentration electrochemical sensor ZWIN-Ca1006

for waterdigital

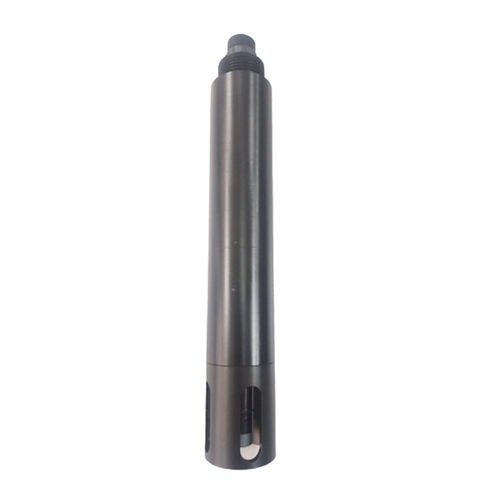

Digital Calcium lon Sensor ZWIN-Ca1006 PRODUCT INTRODUCTION This sensor uses the electrochemical principle to conyert the calcium ion concentration into a measurable electrical signal by measuring the electrochemical properties of calcium ions in water samples, The electrode has a PVC membrane that selectively responds to calcium ions. When calcium ions in the water sample come into contact with the sensitive membrane, it will cause a potential change on the electrode surface. There is a certain relationship between this potential change and the calcium ion concentration, By measuring this potential change, the concentration of calcium ions can be determined. Application fields: agricultural testing, fish farming, chemical production, geology and mining, natural water monitoring, drinking water monitoring. PERFORMANCE PARAMETERS 1.Measurement principle: ion selection method; 2.Measuring range: 0~100/1000mg/L; 3.Accuracy: ±10%FS,±0.5℃; 4.Resolution: 0.01/0.1; 5.Repetition rate: <3%; 6.Response time: <15s; 7.Working temperature: 0-50℃; 8.Sensor size (DXL): ф34×225; 9.Housing material: titanium alloy; 10.Protection level: lP68,6bar;
