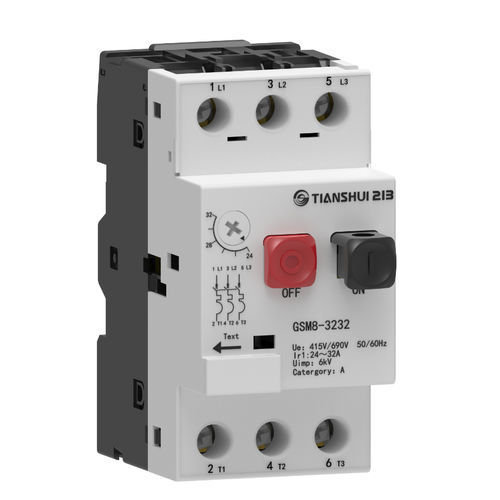

Short-circuit circuit breaker GSM8-3232

modularmotor protectionmolded case

GSM8-32 series Circuit Breakers for Motor Protection is used in the circuit of 50Hz/60Hz with rated voltage up to AC 415V and rated current up to 32A, for the purpose of overload protection, short-circuit protection and three-phase unbalanced protection of motor. They can also be used for less frequently closing or opening three-phase motor. The Breakers can be attached with shunt release, under-voltage release, auxiliary contact, alarming contact. The circuit breaker can be easily attached with auxiliary contact, alarming contact, undervolatge release and shunt release. Standard: GB14048.2 Certificate: CE, CCC Working condition and installation condition Ambient temperature: -20 to +60!, and the average temperature in a 24 hour period can not exceed +35!. Temperature compensation range: -20 to +60! Humidity is up to 50% at +40! ambient temperature, and 90% at 20!. Site altitude: "d3000m Pollution degree: 3 Installation category: 2, 3 Installation: shall be mounted on TH35-7.5 DIN rail
