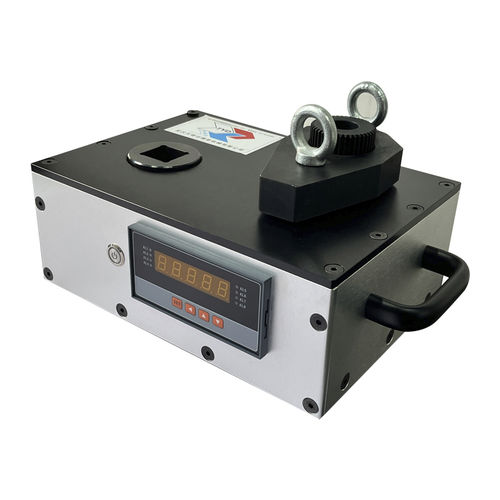

Torque calibrator TC-20

torque wrenchhydraulicdigital

The TC testing instrument is made of aluminum-titanium alloy and ultra-high-strength alloy materials. It is manual control + digital display output, and can detect torque in both directions. It is widely used in occasions requiring strict pre-tightening torque to detect hydraulic torque wrenches to ensure the output torque of hydraulic wrenches. Precise. Product Features 1. All-aluminum-titanium alloy cover and support plate, with high strength, good toughness and light weight 2. Digital display integrated display, easy to adjust 3. High detection accuracy ±0.5% 4. One detector can replace the square plug-in, which is suitable for a wide range of wrenches 5. The pivot point of the reaction arm can be adjusted 360°, and different types of wrenches can be stably supported How to use？ 1. Connection: The detector is placed in a horizontal position and connected to the power supply 2. Preparation: The torque display value is 0. If the real positive/negative value, press the corresponding button to adjust to 0. 3. Connect the pump station: place the hydraulic torque wrench on the sensor, insert the square drive into the sensor completely, turn the wrench to make it rest on the fulcrum of the reaction force; connect the wrench and the pump station with a hose. 4. Adjust the pressure: Start the pump station and adjust the pressure slowly. At this time, the torque value of the display increases slowly until the maximum torque is detected; if the torque value is negative, just install the hydraulic wrench in reverse. After the inspection is completed, the hydraulic wrench can be removed
