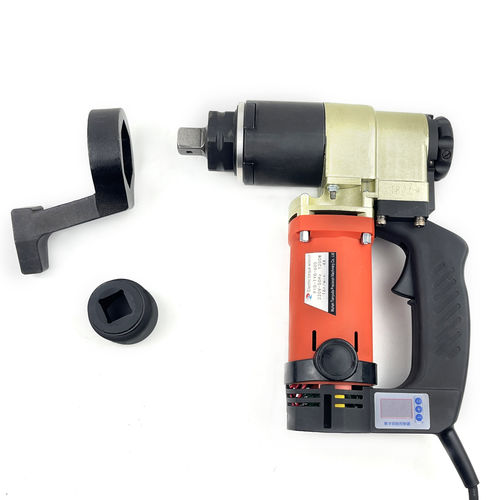

Electric torque wrench P1D-TYD-3500

1"3/4"1 1/2"

P1D-TYD series fixed torque electric wrench is a mechanized construction tool for assembling threaded parts and bolts, with automatic torque control function. Widely used in the erection of bolt-welded structural steel bridges, the installation of workshops, towers and chemical, metallurgical, power generation equipment, large machinery, lifting equipment and vehicle assembly operations, as well as occasions with strict requirements on the torque of threaded fasteners 1) Electric torque wrench has a compact design, high speed and light weight 2) Electric torque wrench control equipment is installed on the main body, digital display, button operation. 3) The socket and reaction rod are independent of the wrench body, which is convenient to replace the socket and reaction rod. 4) There is no vibration to the operator's hand during operation, no reaction force, low load, and reduced labor intensity. 5) The output torque value can be easily set by directly reading the torque displayed on the screen. No conversion is required. 6) Torque control is available in both directions. 7) The wrench stops when the required torque is reached. 8) Repeat torque accuracy +/- 5%. Operation method 1. Check before operation A check before use is to confirm that the power is turned on, the switch is turned on, and the motor sound is normal, then the wrench can be used. 2. Preheat the wrench for at least 5 minutes (10 minutes in winter to a cold place) Start with no-load operation for rated accuracy, select the wrench's maximum torque preheat. 3. "Tightening" operation 1) Turn the handle to the R position. Unlock: When the wrench stops, first press the "set button",
