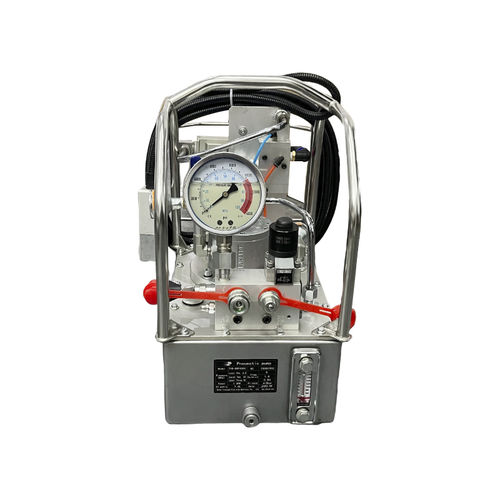

Pneumatic pump TYD-QWP4000

oilpower priminghand-priming

◆ Using compressed air as a power source, it is generally used in coal mines and other occasions, explosion-proof, safe, and non heating. ◆ Use high-performance pneumatic directional valves for safety, reliability, and stable performance. ◆ 4-70MP output pressure can be freely adjusted. ◆ Manually switch the cooling device, which can work for a long time. ◆ External pressure regulator with built-in release valve protection tool. ◆ The pump station is made of aluminum titanium alloy, which is lightweight and easy to carry. ◆ Can simultaneously drive 2 hydraulic torque wrenches (or 4 as needed). 1. Oil storage tank: stores hydraulic oil for work, ensuring the normal operation of the system (there must be sufficient oil volume), and provides the pressure carrier required by the system. 2. Pressure regulating valve (overflow valve): Adjusting this valve can set the working pressure of the hydraulic pump (the highest working pressure is locked at the factory, and it is prohibited to increase the locking pressure). 3. Pressure gauge: displays the working pressure of the hydraulic pump, with a range of 100 Mpa. 4. Oil pump protection frame: installed on the oil storage tank, used to carry and protect the hydraulic pump station. 5. Cooler: Implement forced cooling to reduce the oil temperature during the operation of the oil pump, thereby extending the working time and service life of the wrench. 6. Pneumatic control valve: realizes functions such as high-pressure hydraulic oil output, return oil control, and pressure output return oil switching; Implement the maximum pressure setting to protect the system from working normally under the set pressure.
