Serial device server DS1102

ModbusEthernetDB9M

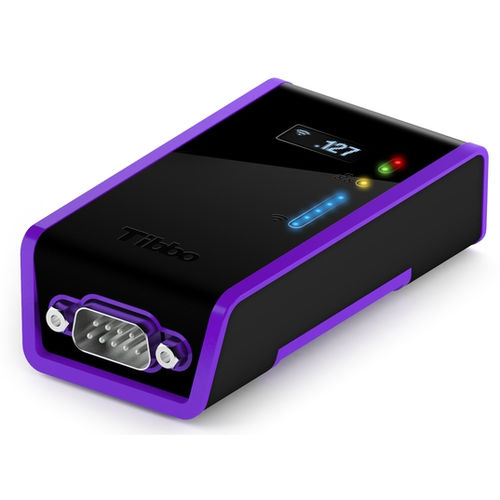

The DS1102 is a compact Tibbo BASIC/C-programmable industrial controller with Ethernet and optional Wi-Fi* connectivity. The DS1102 targets serial-over-IP and industrial automation applications. The DS1102 features a multi-channel RS232/422/485 port. The device has a single DB9M connector and is priced as a single-port product, yet provides 3 independent RS232 channels, 2 independent RS422 channels, or a single RS485 channel. The device can be powered via its power jack or the available power-over-Ethernet module*. In addition, the DS1102 can be equipped with a 96x32 monochrome OLED display. There are eight LEDs on the device's front: green and red main status LEDs, yellow Ethernet link LED, and five blue LEDs, which can be used for Wi-Fi signal strength indication or other purposes. A buzzer is provided as well. Each DS1102 is supplied with the DIN rail and wall mounting plates. The DS1102 comes preloaded with a full-featured serial-over-IP (SoI) application that turns the DS1102 into a powerful serial over IP (SoI) device (a.k.a. "device server"). A versatile Modbus Gateway application is also available. * Wi-Fi and power-over-Ethernet options are mutually exclusive.
