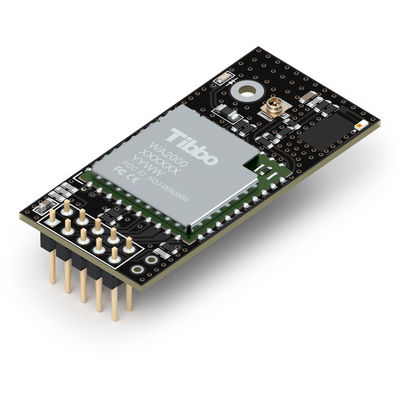

Bluetooth wireless module WA2000 series

WiFidataprinted circuit board

The WA2000 adds 802.11abgn Wi-Fi and BLE4.2 Bluetooth Low Energy connectivity to compatible programmable Tibbo devices. The module is an upgrade of Tibbo's GA1000 Wi-Fi add-on module. The WA2000 is fully supported on Tibbo's ARM-based programmable products: EM510, EM2000, EM2001, TPP2(G2), and TPP3(G2). The WA2000 will also partially work on T1000-based programmable Tibbo products. These devices can only access the Wi-Fi interface of the WA2000, as the BLE interface is not supported by related platforms. The devices are: DS1101, DS1102, EM1000, EM1001, EM1206, TPP2, and TPP3. The WA2000's internal firmware can be updated from a Tibbo BASIC/C app or over-the-air (OTA). OTA updates are performed from our iOS Tibbo Updater app. A single OTA update file may contain not only the new firmware for the WA2000's internal CPU, but also TiOS and compiled Tibbo BASIC/C app for the host device (such as the EM2000)*. This means that your entire programmable Tibbo device can be updated over the air and using a single file. In addition, we have developed an app for configuring compatible Tibbo devices via the BLE interface of the WA2000. Dubbed L.U.I.S., or Loadable User Interface System, the app relies on HTML5-formatted data to present the user with configuration pages sent by Tibbo devices. A simple-to-use library that adds L.U.I.S. support to your Tibbo BASIC?C app is also available. The WA2000 utilizes an SPI interface and requires only 5 I/O lines to control. The module is supplied in two versions: the WA2000U with a U.FL connector for attaching an external antenna, and WA2000C device with a chip antenna onboard.
