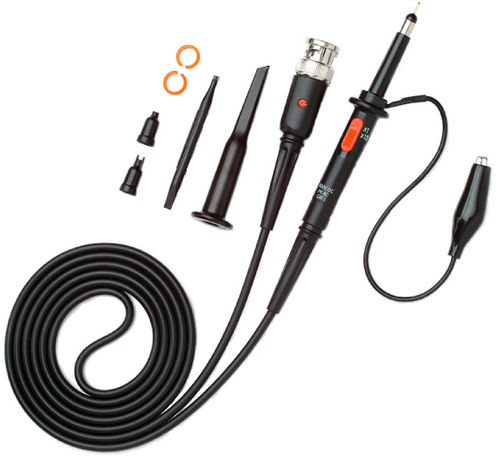

Voltage probe HP-3060

for oscilloscopes

Probe 1:1-1:10 - HP-3060 60 MHz bandwidth, rated 600 V. The Probe 1:1-1:10 - HP-3060 is a 1:1-1:10 selectable passive high impedance oscilloscope probe with 60 MHz bandwidth (1:10) designed and calibrated for use on an oscilloscope having an input impedance of 1 MOhm shunted by 20 pF. However, it may be compensated for use with oscilloscopes having an input capacitance of 15 to 35 pF. The probe incorporates a two position slide switch in the head which selects the attenuation of X1, X10 position. The modular construction facilitates simple field replacement of the major parts.
