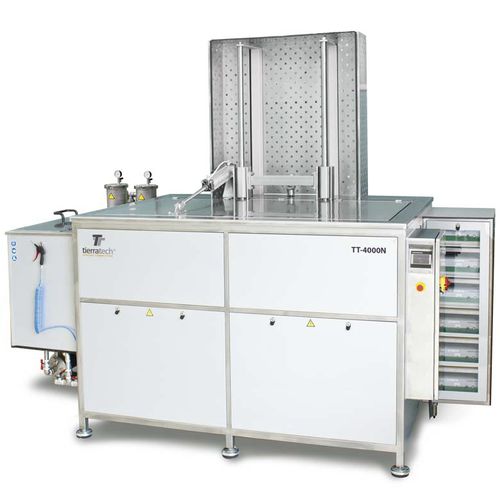

Ultrasonic cleaning machine TT-4000N

immersionautomaticindustrial

• Internal dimensions: 94” x 59” x 50” in • Useful measurements: 90” x 54” x 35” in • External measurements: 164” x 89” x 61” in • Weight: 6172 Lb • Pneumatic load platform: Up to 4409 lb ELECTRICAL CHARACTERISTICS • Power Supply: 400V • Heating element: 2 x 15000W (30000W) ULTRASONIC CHARACTERISTICS • Ultrasonic power: 24000Wp (48000Wp-p) • Ultrasonic generators with an output power of 24000Wp (48000Wp-p) • 12 submergible emitters with 2000Wp (4000Wp-p) of power built in INOX AISI 316 steel, 1” inch thick. The emitter contains 34 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body. • Working frequency: 40 KHz sweep system ± 2% CONTROL PANEL • 4.3” inch touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems. Programmable weekly calendar • 6 outputs and 8 inputs temperature module PLC FINISH AND ACCESORIES • Tank built in INOX AISI 304 Stainless steel, 0,11” inch thick • External panel in fingerprint-resistant steel, 0,03” inch thick • Thermo-acustic isolator K-Flex Duct Net, 0,8” inch thick • Reinforced pneumatic platform for loading and unloading up to 4409 lb • 2” inch draining ball valve • Height adjustable legs • Insulated tank cover in Stainless steel with pneumatic shock absorber • Air blow-gun for drying parts • Integrated wateflow system. Removes the existing waste on the tank surface, keeping the cleaning equipment in perfect condition • (Optional): Filtration system (Stailess steel filter with polypropylene/polyester bag) for waste and mud
