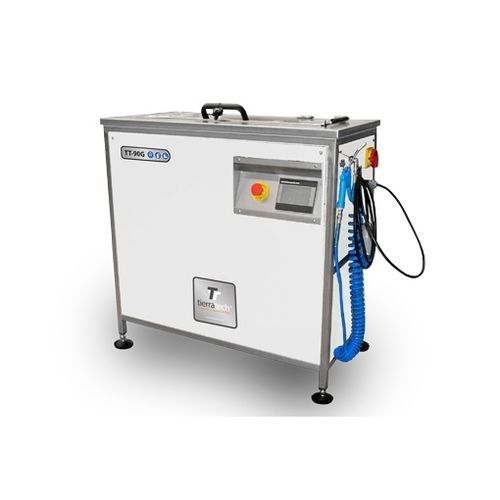

Ultrasonic cleaning machine TT-90G

industrialcustomhigh-performance

• Power Supply: 240V • Heating element: 1500W ULTRASONIC CHARACTERISTICS • Ultrasonic power: 1000W (2000W p-p) • 1 ultrasonic generator with an output power of 1000W (2000W p-p) • 1 submersible emitter with a power of 1000W (2000W p-p) made of 2.5 mm thick stainless steel AISI 316 steel. The emitter contains 20 high-performance IBL piezo-electric transducers in titanium steel • Working frequency: 40 KHz sweep system ± 2% CONTROL PANEL • 4.3” touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems. Programmable weekly calendar • 6 outputs and 8 inputs temperature module PLC FINISH AND ACCESORIES • Tank made of 0.07” in thick stainless stell AISI 316 • External panel in 0.03“ in thick fingerprint resistant steel • 0.78” in thick thermo-acoustic insulation • Rolling System: Support that allows to rotate the roller in a continuous way with 7.2W AC synchronous motor • 1½” drain ball valve • Height-adjustable silentblock legs • Tank cover in stainless steel with pneumatic shock absorber • Air blow gun for drying the parts TECHNICAL DATA • Internal dimensions: 27.5” x 9.8” x 19.6” in • External dimensions: 39.3” x 17.7” x 36” in • Weight: 165 Lb • Maximum diameter of the roller in the area to be cleaned: Ø 7.8” in • Minimum diameter of the roller in the area to be cleaned: Ø 2.36” in • Minimum length of the area to be cleaned from the roller: 3.93” in • Maximum length of the area to be cleaned from the roller: 23.2” in • Maximum distance between roller supports: 24.8” in
