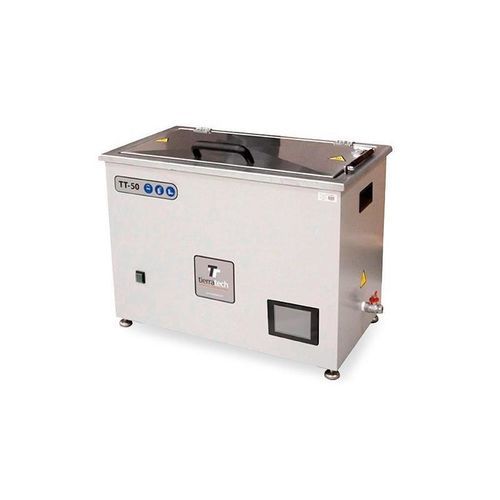

Ultrasonic cleaning machine TT-50

immersionautomaticindustrial

• Internal dimensions: 24" x 12" x 12" • Useful basket measurements: 22" x 10" x 9" • External measurements: 30.5" x 16.5" x 21" • Weight: 88 Lb ELECTRICAL CHARACTERISTICS • Power Supply: 230V / 10A • Heating element: 2x450W ULTRASONIC CHARACTERISTICS • Ultrasonic power: 700Wp (1400Wp-p) • 1 ultrasonic generator with an output power of 700Wp (1400Wp-p) • Working frequency: 40 KHz sweep system ± 2% • 14 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body. CONTROL PANEL • General switch • DEGAS system to degas water • Ultrasounds timer • Temperature selector • Power level selector: 50% - 100% FINISH AND ACCESORIES • Tank built in INOX AISI 316 Stainless steel, 0,08” inch thick • External panel in fingerprint-resistant steel, 0,03” inch thick • Thermo-acustic isolator K-Flex Duct Net, 0,8” inch thick • Integrated handles on the external panel • Stainless steel basket with anchorage system for loading, unloading and draining pieces • ½” inch draining ball valve • Height-adjustable silentblock legs • Insulated tank cover in stainless steel
