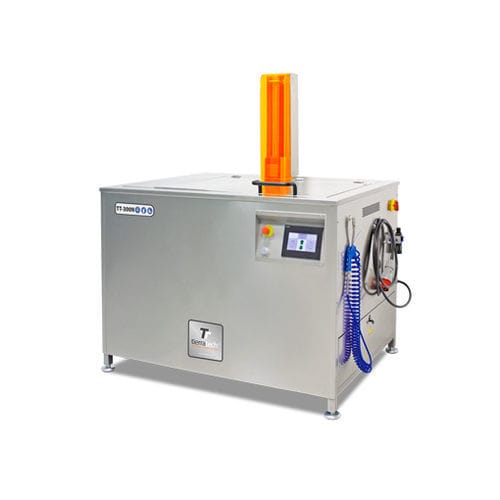

Ultrasonic cleaning machine TT-300N

immersionautomaticindustrial

• Internal dimensions: 35” x 24” x 25” in • Useful measurements: 34” x 23” x 15” in • External measurements: 60” x 40” x 41" in • Weight: 606 Lb. • Pneumatic load platform: Up to 551 lb ELECTRICAL CHARACTERISTICS • Power Supply: 400V • Heating element: 7500W ULTRASONIC CHARACTERISTICS • Ultrasonic power: 4000Wp (8000Wp-p) • 1 ultrasonic generator with an output power of 4000Wp (8000Wp-p) • 2 submergible emitters with 2000Wp (4000W p-p) of power built in INOX AISI 316 steel, 1” inch thick. The emitter contains 34 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body. • Working frequency: 40 KHz sweep system ± 2% CONTROL PANEL • Integrated control panel with 7" TFT screen. - Time and temperature control. - Movement button (up - down - shaking). - US button (connect - disconnect), direct ultrasonic alarms and selectors. - Heating button (on - off). - WFS/Filter button (optional) (on - off). - START-STOP button (connect - disconnect cycle). - ON-OFF button (on - off control). - Capacity to work with 22 programmable cycles, protected by password. - Temperature control through PT100, over temperature safety and breakage sensor. - Weekly programmer, for preheating and turning off the machine. - Level control. - IP65 protection. FINISH AND ACCESORIES • Tank built in INOX AISI 304 Stainless steel, 0,08” inch thick • External panel in fingerprint-resistant steel, 0,03” inch thick • Thermo-acustic isolator K-Flex Duct Net, 0,8” inch thick
