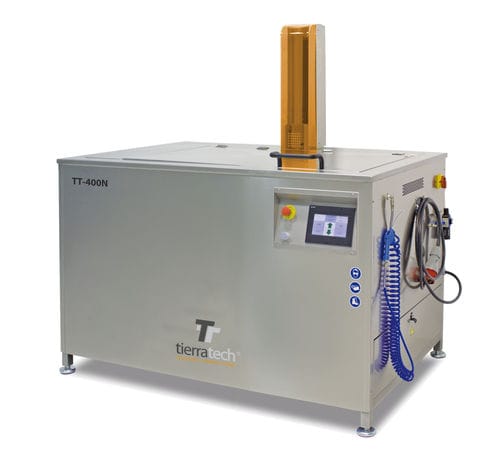

Ultrasonic cleaning machine TT-400N

immersionautomaticindustrial

Internal measurements: 43” x 26” x 27” in. (excluding auxiliary tank) Useful measures: 41” x 19” x 16” in. Platform measures: 41” x 19” in. External measures: 61” x 35” x 42” in. Weight: 705 lb. ELECTRICAL CHARACTERISTICS • Power Supply: 400V. • Heating element: 7000W. ULTRASONIC CHARACTERISTICS • Ultrasonic Power: 3400W. (6800W. p-p). • 1 ultrasonic generator with 3400W. (6800W. p-p) output power. • 2 submergible emitters with 1700W. (3400W. p-p) of power each one, built in INOX AISI 316 steel, 1” inch thick. The emitter contains 34 high-performance IBL piezo-electric transducers in titanium-steel. • Working frequency: 40 KHz sweep system ± 2%. CONTROL PANEL • 4.3” inch touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems. Programmable weekly calendar. • 6 outputs and 8 inputs temperature module PLC. FINISHING AND ACCESSORIES • Tank built in INOX AISI 304 Stainless steel, 0,08” inch thick. • External panel in fingerprint-resistant steel, 0,03” inch thick. • Thermo-acustic isolator K-Flex Duct Net, 0,8” inch thick. • Reinforced pneumatic platform for loading and unloading up to 550 lb. • 1½” inch draining ball valve. • Height adjustable legs. • Insulated tank cover in Stainless-Steel with pneumatic shock absorber. • Air blow-gun for drying parts. • Integrated wateflow system. Removes the existing waste on the tank surface, keeping the cleaning equipment in perfect condition. • (Optional): Filtration system (Stailess-Steel filter with polypropylene/polyester bag) for waste and mud.
