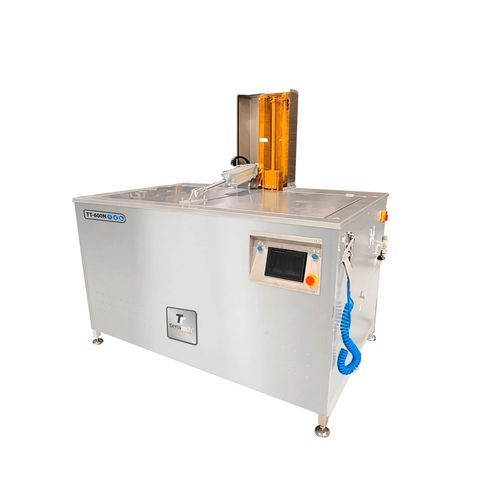

Ultrasonic cleaning machine TT-600N

immersionautomaticindustrial

• Internal dimensions: 51” x 29” x 26” in • Useful measurements: 48” x 26” x 17” in • External measurements: 81” x 47” x 42"in • Weight: 881 Lb. • Pneumatic load platform: Up to 772 lb ELECTRICAL CHARACTERISTICS • Power Supply: 400V • Heating element: 9000W ULTRASONIC CHARACTERISTICS • Ultrasonic power: 6000Wp (12000Wp-p) • Ultrasonic generator with an output power of 6000Wp (12000Wp-p) • 3 submergible emitters with 2000Wp (4000Wp-p) of power built in INOX AISI 316 steel, 1” inch thick. The emitter contains 34 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body. • Working frequency: 40 KHz sweep system ± 2% CONTROL PANEL • Touch screen (4,3 "), functional and intuitive, with access to selection of time of ultrasonic, temperature, security levels and peripheral systems. - Weekly calendar programming to optimize the start-up of the equipment. - PLC with temperature module with 8 inputs and 6 outputs. FINISH AND ACCESORIES • Tank built in INOX AISI 304 Stainless steel, 0,08” inch thick • External panel in fingerprint-resistant steel, 0,03” inch thick • Thermo-acustic isolator K-Flex Duct Net, 0,8” inch thick • Reinforced pneumatic platform for loading and unloading up to 771 lb • 1½” inch draining ball valve • Height adjustable legs • Automatic insulated tank cover, in stainless steel, powered by pneumatic cylinder, with retainer, drip gutter and dead man safety system
