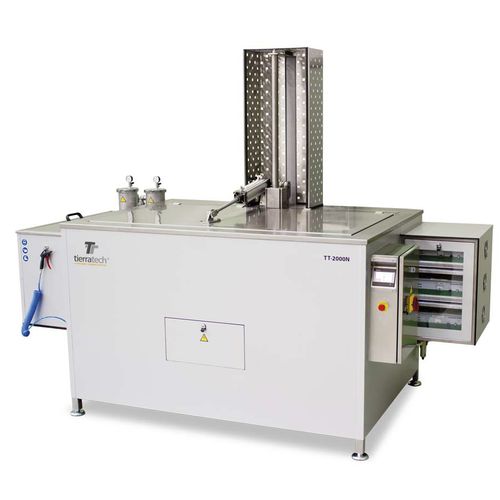

Ultrasonic cleaning machine TT-2000N

immersionautomaticindustrial

• Internal dimensions: 69” x 40” x 43” in • Useful dimensions: 65” x 36” x 31” in • External dimensions: 130” x 65” x 53” in • Weight: 2755 Lb • Pneumatic load platform: Up to 2205 lb ELECTRICAL CHARACTERISTICS • Power Supply: 400V • Heating element: 2 x 9000W ULTRASONIC CHARACTERISTICS • Ultrasonic power: 12000Wp (24000W p-p) • Ultrasonic generators with an output power of 12000Wp (24000W p-p) • 6 submergible emitters with 2000W. (4000W. p-p) of power built in INOX AISI 316 steel, 1” inch thick. The emitter contains 34 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body. • Working frequency: 40 KHz sweep system ± 2% CONTROL PANEL • 4.3” inch touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems. Programmable weekly calendar • 6 outputs and 8 inputs temperature module PLC FINISH AND ACCESORIES • Tank built in INOX AISI 304 Stainless steel, 0,09” inch thick • External panel in fingerprint-resistant steel, 0,03” inch thick • Thermo-acustic isolator K-Flex Duct Net, 0,8” inch thick • Reinforced pneumatic platform for loading and unloading up to 2204 lb • 2” inch draining ball valve
