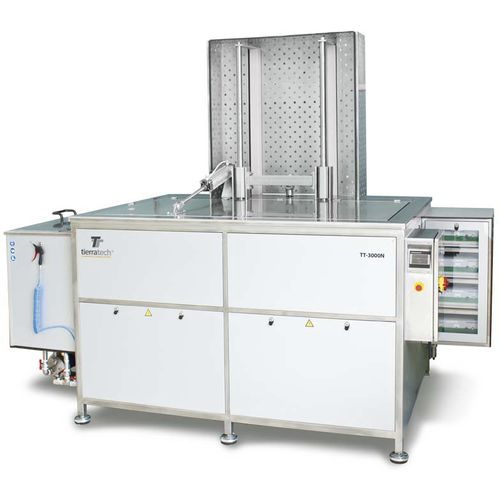

Ultrasonic cleaning machine TT-3000N

immersionautomaticindustrial

• Internal dimensions: 81” x 47” x 47” in • Useful measurements: 76” x 43” x 35” in • External measurements: 145” x 71” x 58” in • Weight: 4078 Lb ELECTRICAL CHARACTERISTICS • Power Supply: 400V • Heating element: 2 x 12000W ULTRASONIC CHARACTERISTICS • Ultrasonic power: 16000Wp (32000Wp-p) • Ultrasonic generators with an output power of 16000Wp (32000Wp-p) • 8 submergible emitters with 2000Wp (4000W p-p) of power built in INOX AISI 316 steel, 1” inch thick. The emitter contains 34 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body. • Working frequency: 40 KHz sweep system ± 2% CONTROL PANEL • 4.3” inch touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems. Programmable weekly calendar • 6 outputs and 8 inputs temperature module PLC FINISH AND ACCESORIES • Tank built in INOX AISI 304 Stainless steel, 0,09” inch thick • External panel in fingerprint-resistant steel, 0,03” inch thick • Thermo-acustic isolator K-Flex Duct Net, 0,8” inch thick • Reinforced pneumatic platform for loading and unloading up to 3306 lb • 2” inch draining ball valve • Height adjustable legs • Insulated tank cover in Stainless-Steel with pneumatic shock absorber • Air blow-gun for drying parts • Integrated wateflow system. Removes the existing waste on the tank surface, keeping the cleaning equipment in perfect condition • (Optional): Filtration system (Stailess-Steel filter with polypropylene/polyester bag) for waste and mud
